Mini DC Electric Cabinet Lock – 5V/12V/24V Solenoid Security

SPECIFICATIONS

Brand Name: ximiir

Certification: CE

Choice: yes

Current: 2A/2.3A/1.2A

Fail-secure type: Power to open

High-concerned chemical: None

Model Number: XM-7147

Voltage: DC5V/12V/24V

semi_Choice: yes

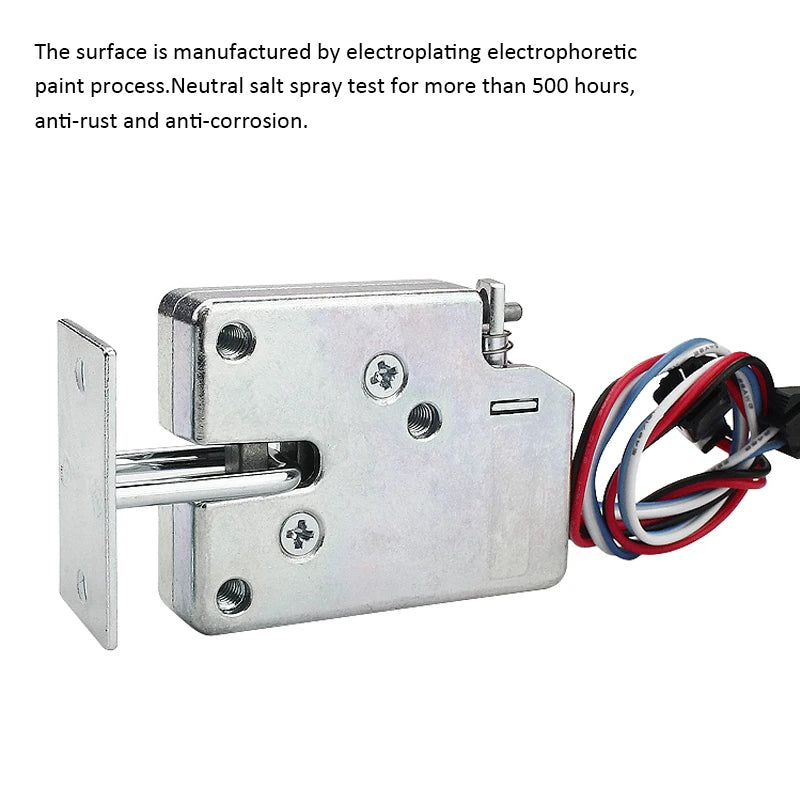

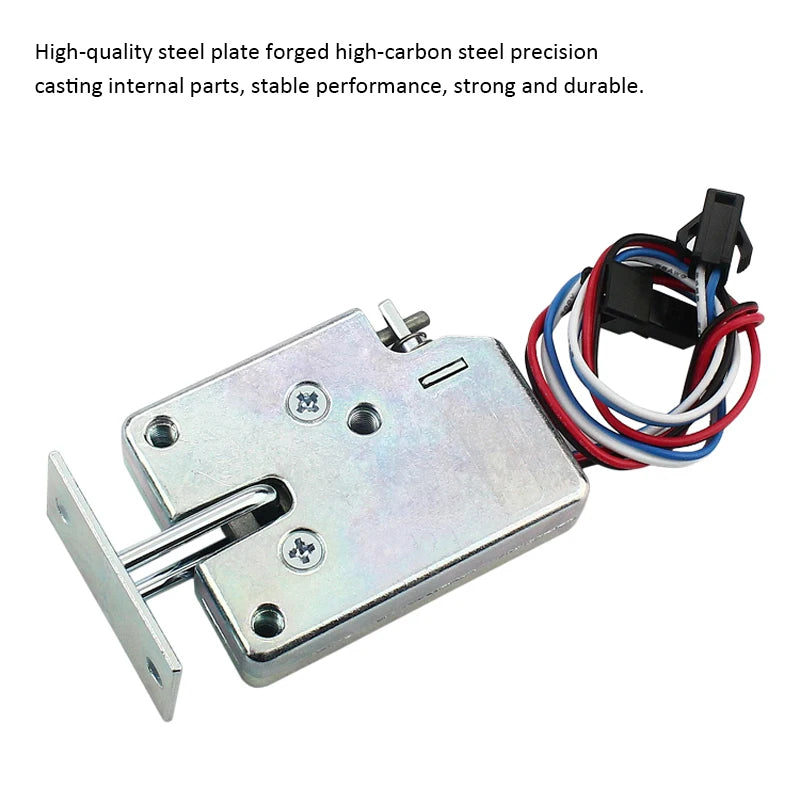

Secure your storage spaces with the Smart Cabinet Electric Lock, engineered for strength and long‑lasting performance. Built with a steel shell and carbon steel precision casting parts, this lock is designed for heavy use, delivering a service life of over 300,000 cycles.

Operating on DC 5V/12V/24V with a fail‑secure design (power to open), it provides dependable protection for cabinets, lockers, cupboards, windows, and vending machines. Compact yet powerful, it ensures reliable magnetic locking while remaining discreet and easy to install.

With a DC12V/2.3A parameter, this lock is optimized for consistent performance in commercial and residential applications. Its rugged construction resists wear and tear, making it ideal for high‑traffic environments like supermarkets, express cabinets, and office storage.

⚠️ Important Note: For safe operation, allow continuous energization for only 0–5 seconds. Extended power beyond 3 minutes may damage the electromagnet.
